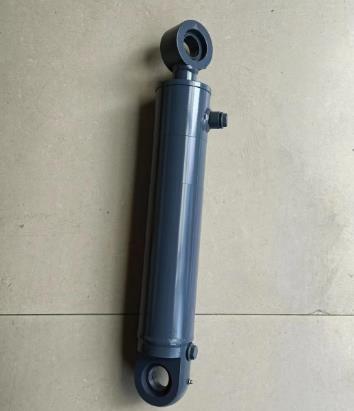

Wittgen conveyor belt swing oil cylinder 45450

The swinging hydraulic cylinder is a tightly assembled accessory that utilizes hydraulic pressure in a very small space to gather very high torque. It adopts a combined spiral tooth structure internally, and the entire oscillating hydraulic cylinder can produce larger torque in a smaller space. Despite their high power, they can still be accurately and easily controlled, and swing hydraulic cylinders have been successfully applied in almost all fields that require limited rotational motion and high torque.

Principle of swinging cylinder

The principle of a swing cylinder is to drive the gear through a rack and convert the reciprocating motion of the hydraulic cylinder into the forward and reverse swing rotation of the gear shaft, and at the same time, convert the thrust of the reciprocating cylinder into the output torque of the gear shaft. Due to the fact that the swing angle of the gear shaft is directly proportional to the length of the rack, the swing angle of the gear shaft can be arbitrarily selected and can be greater than 360 °.
